20 × 20 FT BOOTH DESIGN
20×20 Portal Frame Trade Show Booth
Product ID: EXM-2020-005
An illuminated portal frame gives this 20×20 concept a clear architectural backdrop. A square hanging sign adds overhead branding, while freestanding presentation stations, a front reception counter and two meeting areas organize the visitor experience.
- Booth size
- 20 × 20 ft
- Design focus
- Portal frame & hanging sign
- Meeting areas
- 2 tables · 8 chairs shown
- Pricing
- Request a quote
Your product ID and page link are already included in the form.
Product Specifications
| Product ID | EXM-2020-005 |
|---|---|
| Booth Size | 20 × 20 ft · 400 sq ft |
| Booth Type | Custom booth concept; final aisle configuration to be confirmed |
| Structure Height | Final height and structural details to be confirmed for your venue |
| Design Style | Modern / Architectural |
| Key Features | Portal frame, square hanging sign, monitor display stations, central presentation counter and reception desk |
| Meeting Furniture Shown | Two round tables with four chairs each |
| Storage Shown | Counter-based storage options to be specified; internal capacity is not shown |
| Customization | Branding, frame graphics, screen specifications, counter layout and meeting furniture |
| Rental / Custom Options | Reviewed for your show dates and project scope |
| Availability | Quote-based; subject to project review |
Renderings show a design concept, not a completed installation. Heights, materials, screen sizes and final construction details require confirmation.
Design Features

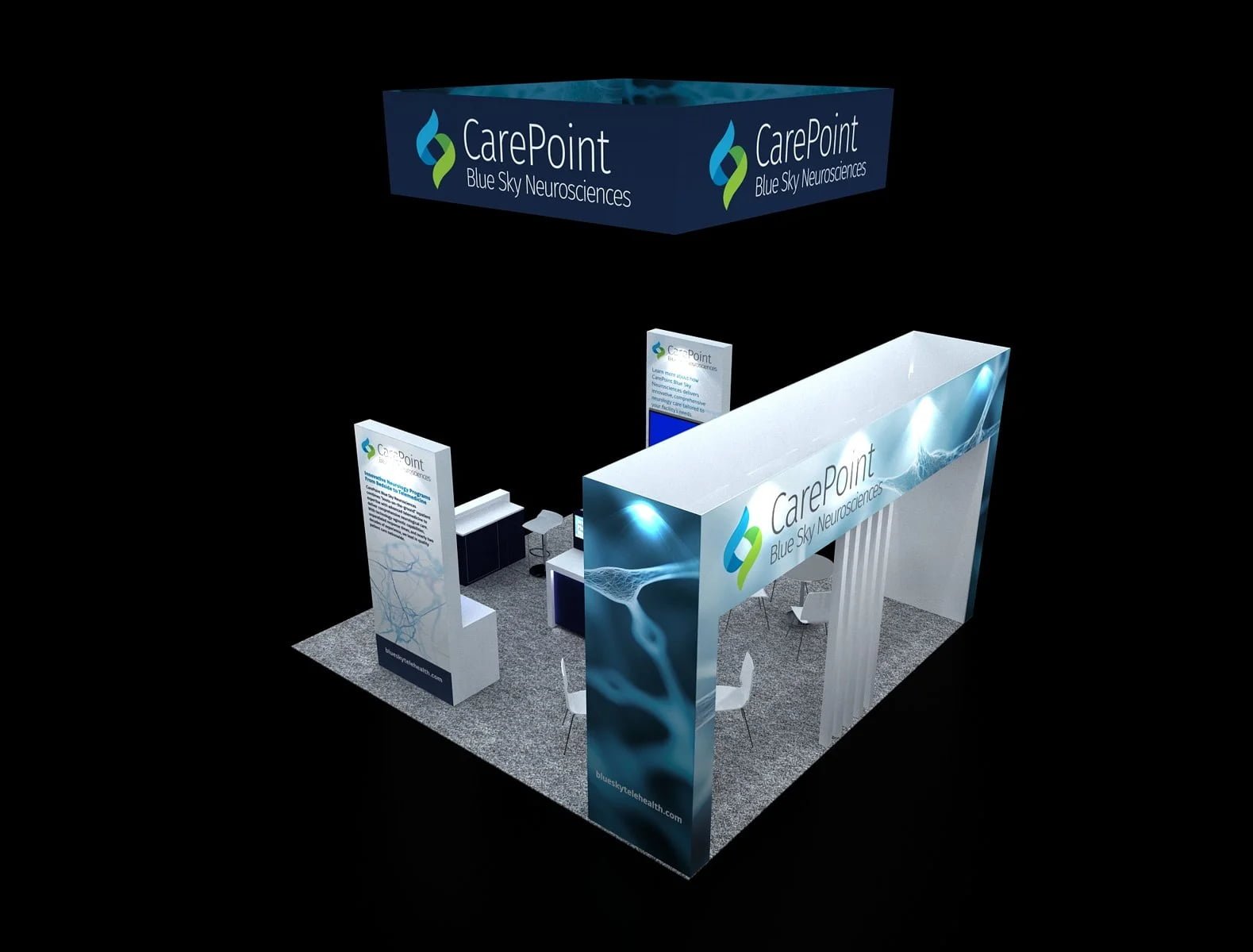

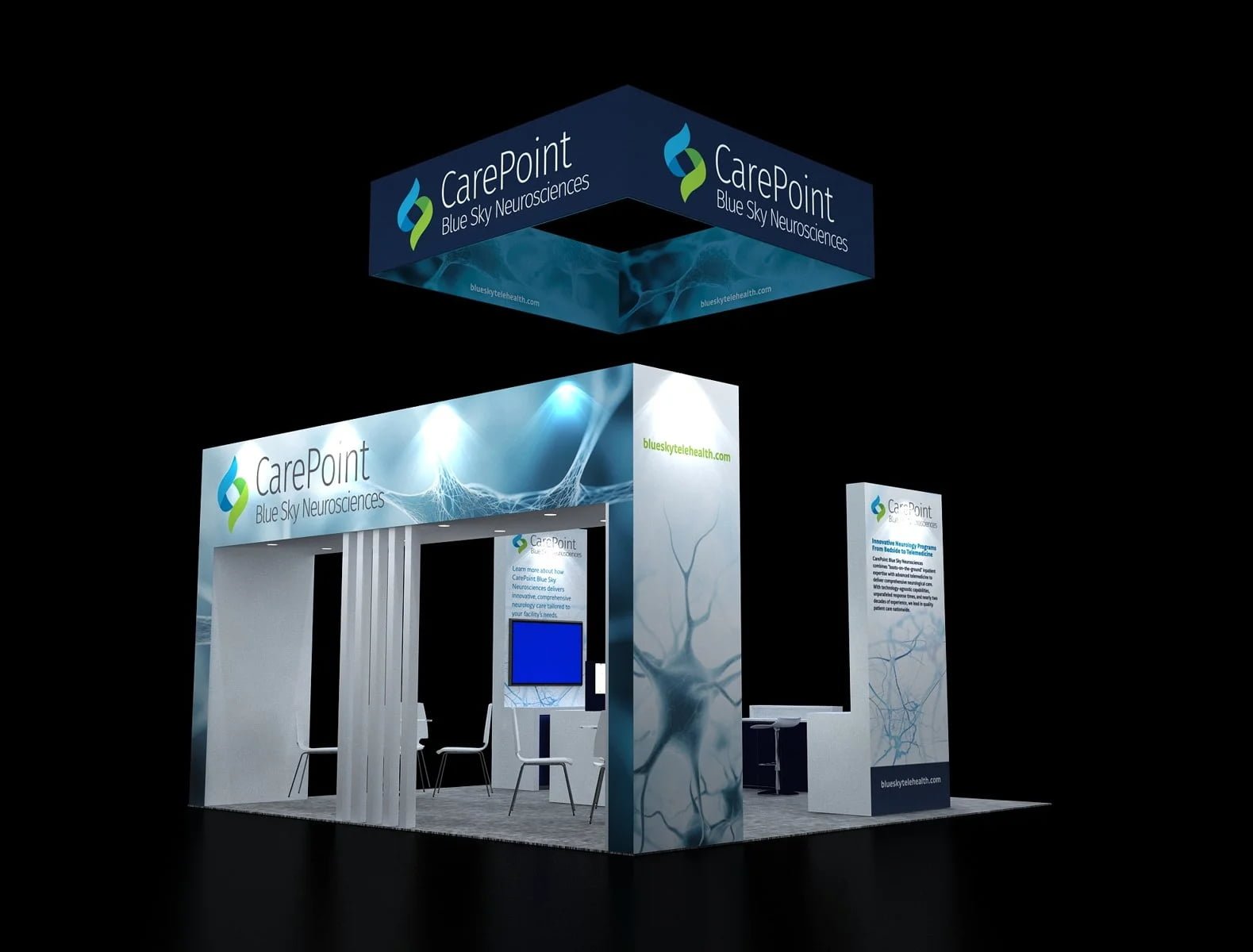

- Portal-style backdrop: A broad graphic header and two side columns frame the meeting area without a solid full-width wall.
- Square hanging sign: Four-sided overhead branding helps identify the booth from surrounding aisles. Rigging feasibility and approvals require show-specific review.
- Freestanding presentation stations: Tall graphic panels with monitor positions create separate places for demonstrations.
- Central presentation counter: A low screen position and counter surface support close-up conversations about your products or services.

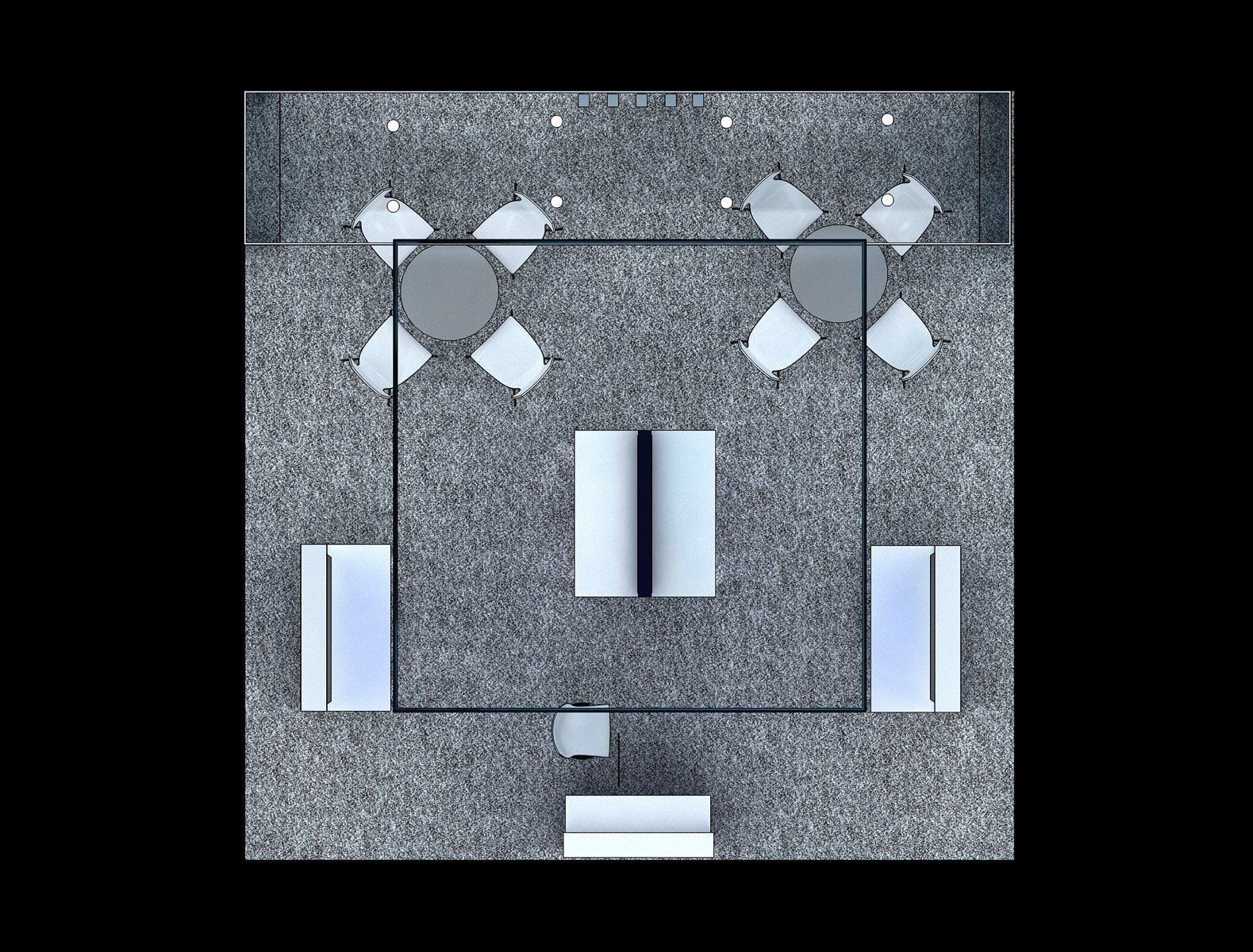

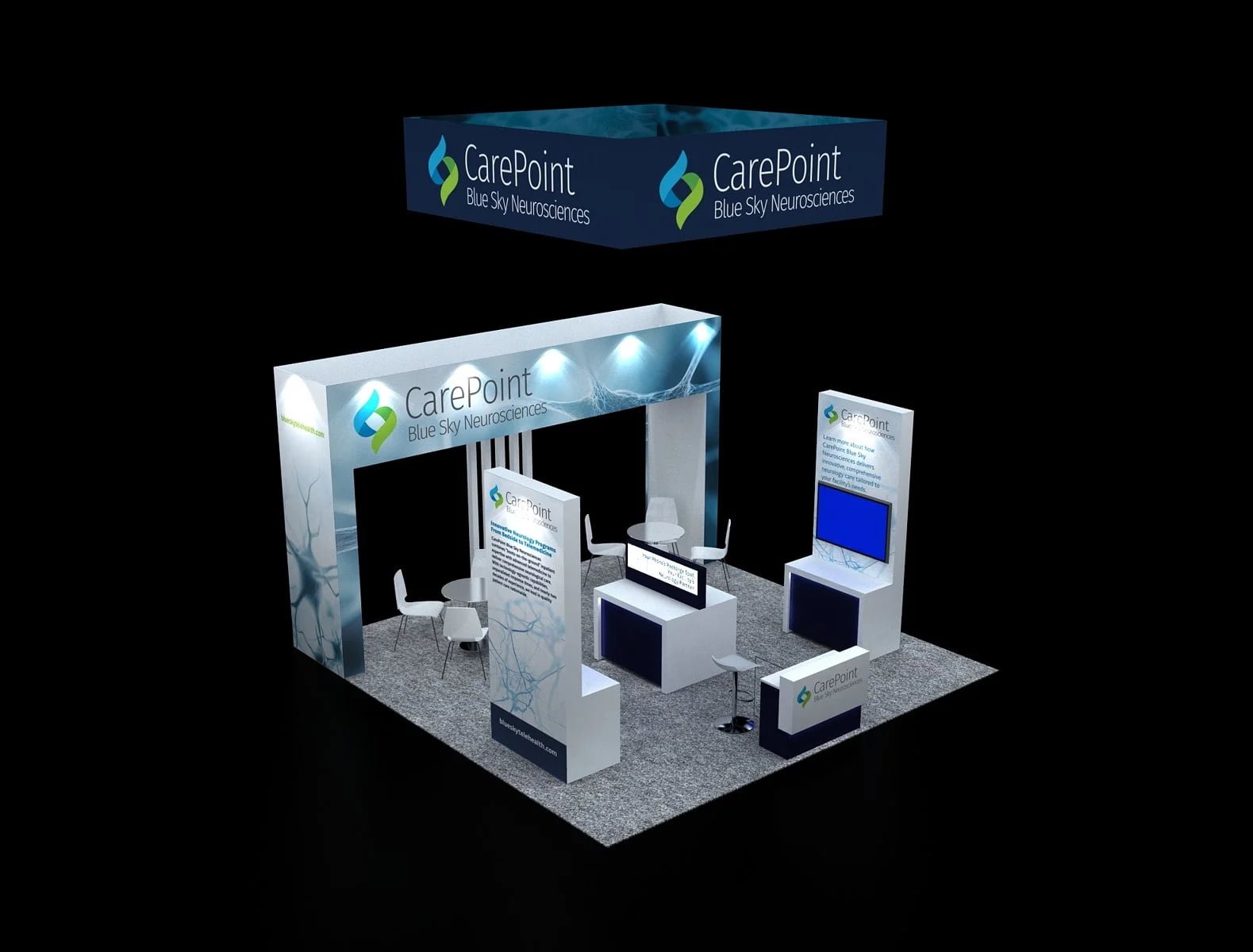

- Two meeting tables: The floor plan shows two round tables with four chairs each behind the presentation area.

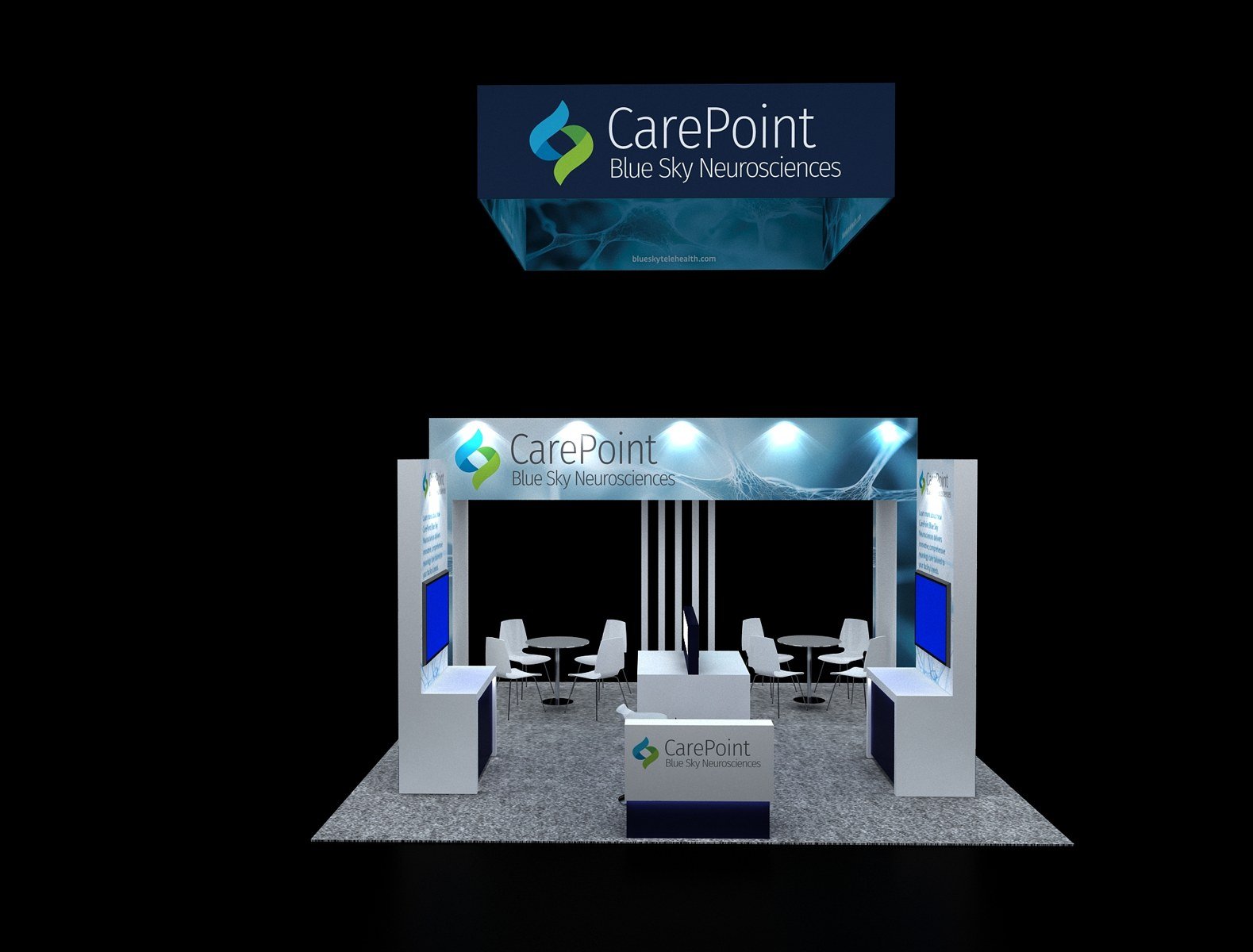

- Front reception point: A separate branded desk gives staff a place to greet visitors at the front of the concept.

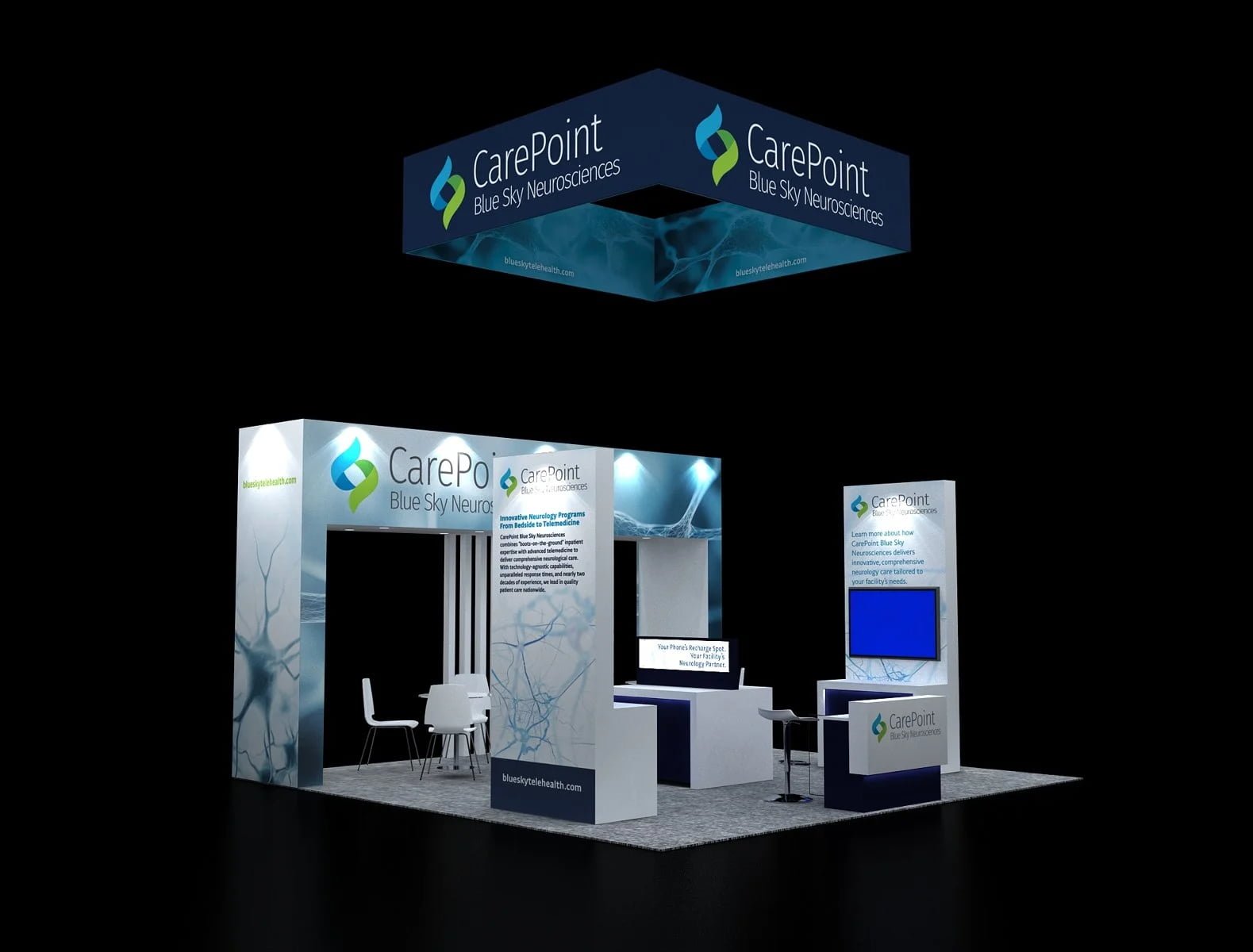

Renderings & Floor Plan

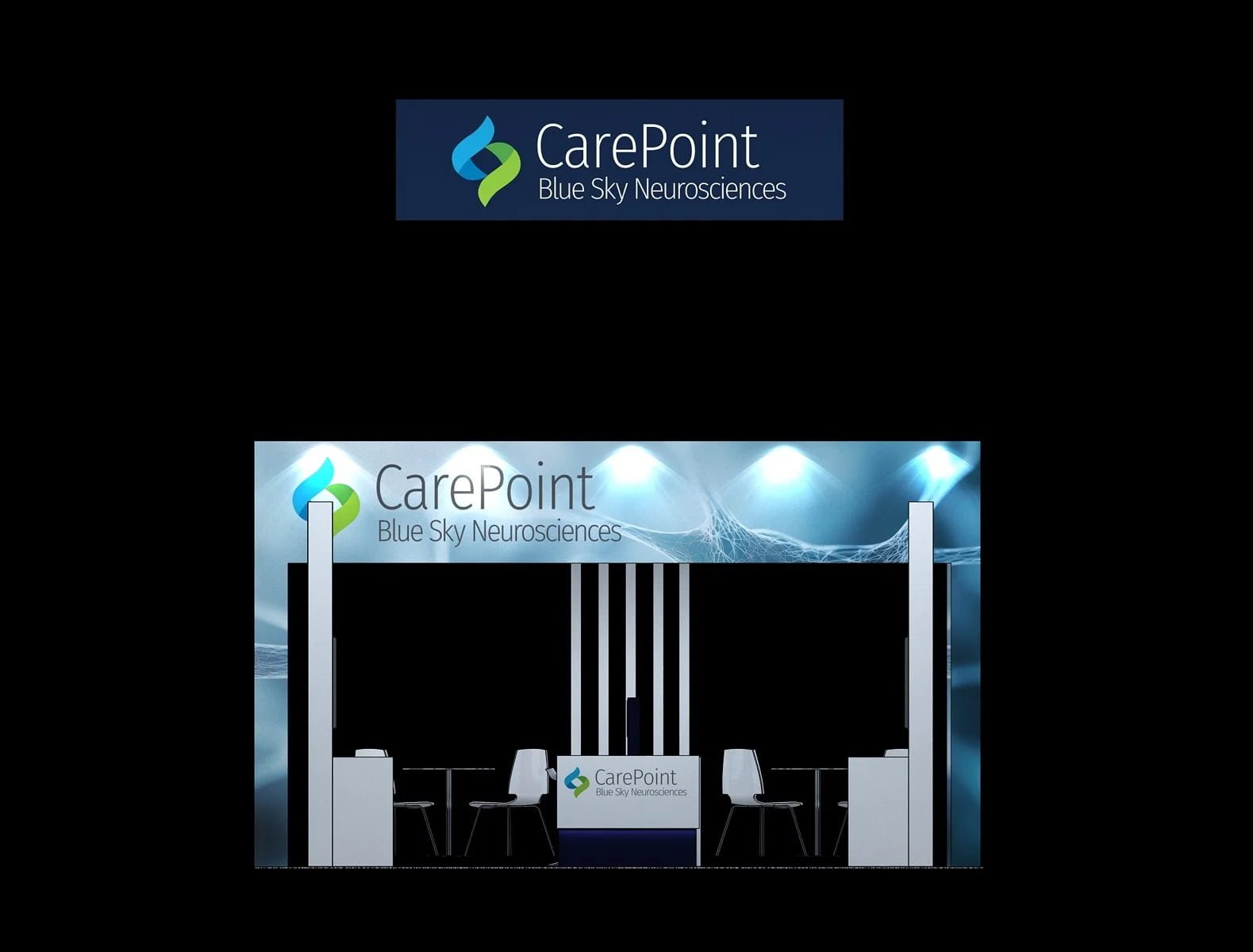

Review the perspectives first, followed by the front elevation and floor plan at the end. Select any image to enlarge it.
Customization Options
Adapt the portal header, hanging sign and display panels to your brand. The blue-and-white graphic treatment shown can be replaced with your own colors, imagery and messaging.
Review monitor sizes, counter positions and meeting furniture around your demonstration needs. Share your assigned floor plan so we can assess access routes, structure placement and hanging-sign requirements.
What’s Included / Optional
This concept is quoted to your selected configuration and event. The renderings do not define a fixed-price package.
- Booth components to confirm: portal frame, square hanging sign, graphic panels, presentation counters, reception desk and flooring.
- AV and furniture to specify: monitors, mounts, lighting, two meeting tables and seating.
- Services to scope: design adaptation, fabrication, printing, transportation, installation, dismantling and storage.
Your proposal will distinguish included items from optional equipment and separately arranged show services, including overhead rigging and electrical services.
From Design to Show Floor
Share your show details and floor plan → review the layout and itemized proposal → confirm graphics and production → coordinate delivery, installation and dismantling.
Our Las Vegas team supports exhibit projects across the United States. Explore our booth design service for help adapting this concept.
Frequently Asked Questions
Does the hanging sign require venue approval?
The square sign is shown suspended above the booth. Its size, height, suspension method and permitted location must be reviewed against your show requirements before it is included in the final plan.
Can the booth be adapted without the hanging sign?
We can review a version that relies on the portal header for branding. The final layout and visual balance will be adjusted to suit your space.
Are the screens included?
The renderings show monitor positions at the presentation stations and central counter. Screen sizes, mounts and equipment are confirmed in the project quote.
How many visitors can sit at the meeting tables?
The supplied floor plan shows two tables with four chairs each. Seating can be revised after reviewing furniture dimensions and circulation space.
Can the graphics work for a different industry?
Yes. This is a customizable design concept. Replace the sample healthcare graphics with your brand and use the presentation areas for your products or services.
